CMS600P2 Portable Laptop Ultrasound Scanner | Full Digital B-Ultrasound System

CMS600P2 Portable Laptop Ultrasound Scanner | Full Digital B-Ultrasound System

Regular price $1,299.00 USD
Regular price Sale price $1,299.00 USD
Sale Sold out
Shipping calculated at checkout.
Model
Quantity

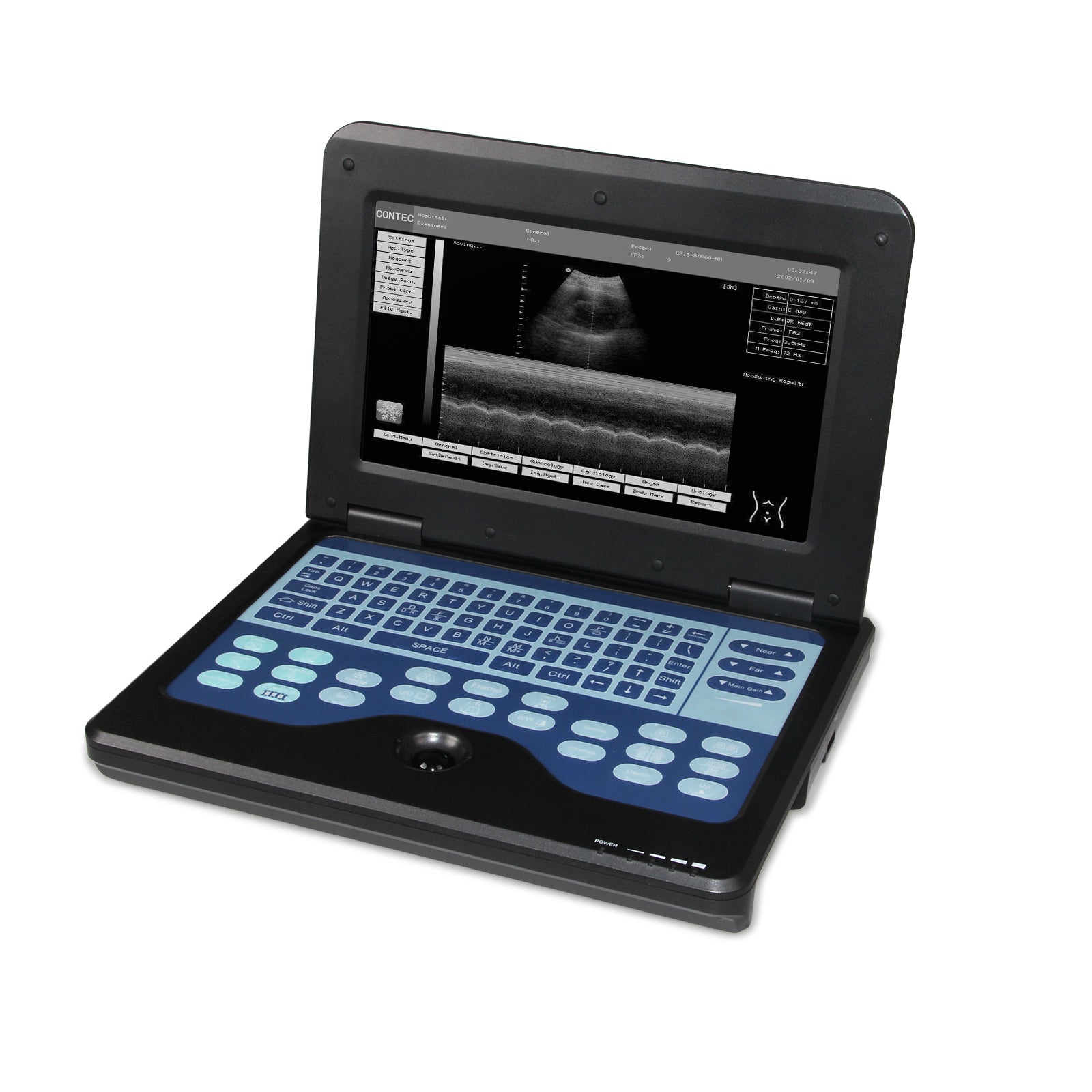

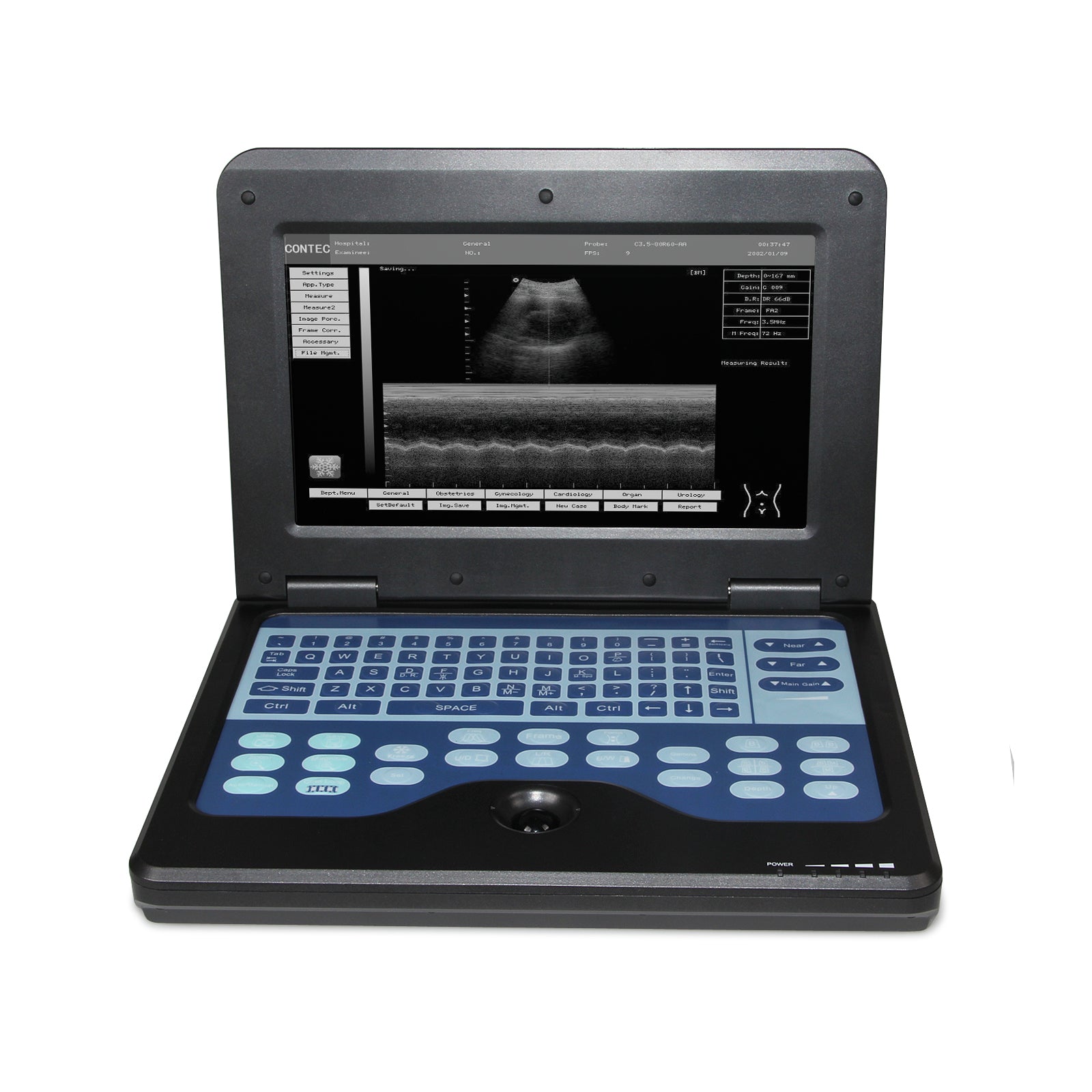

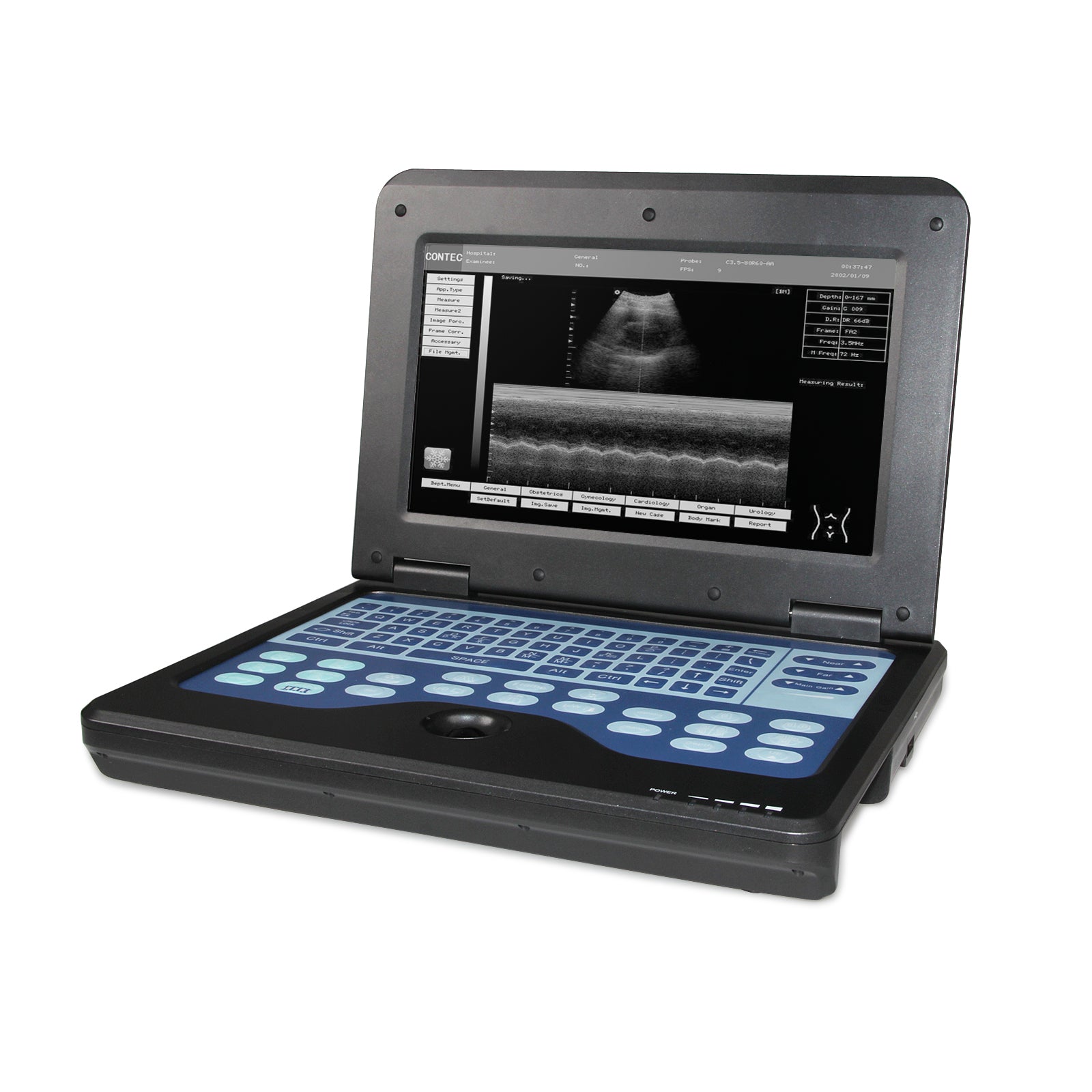

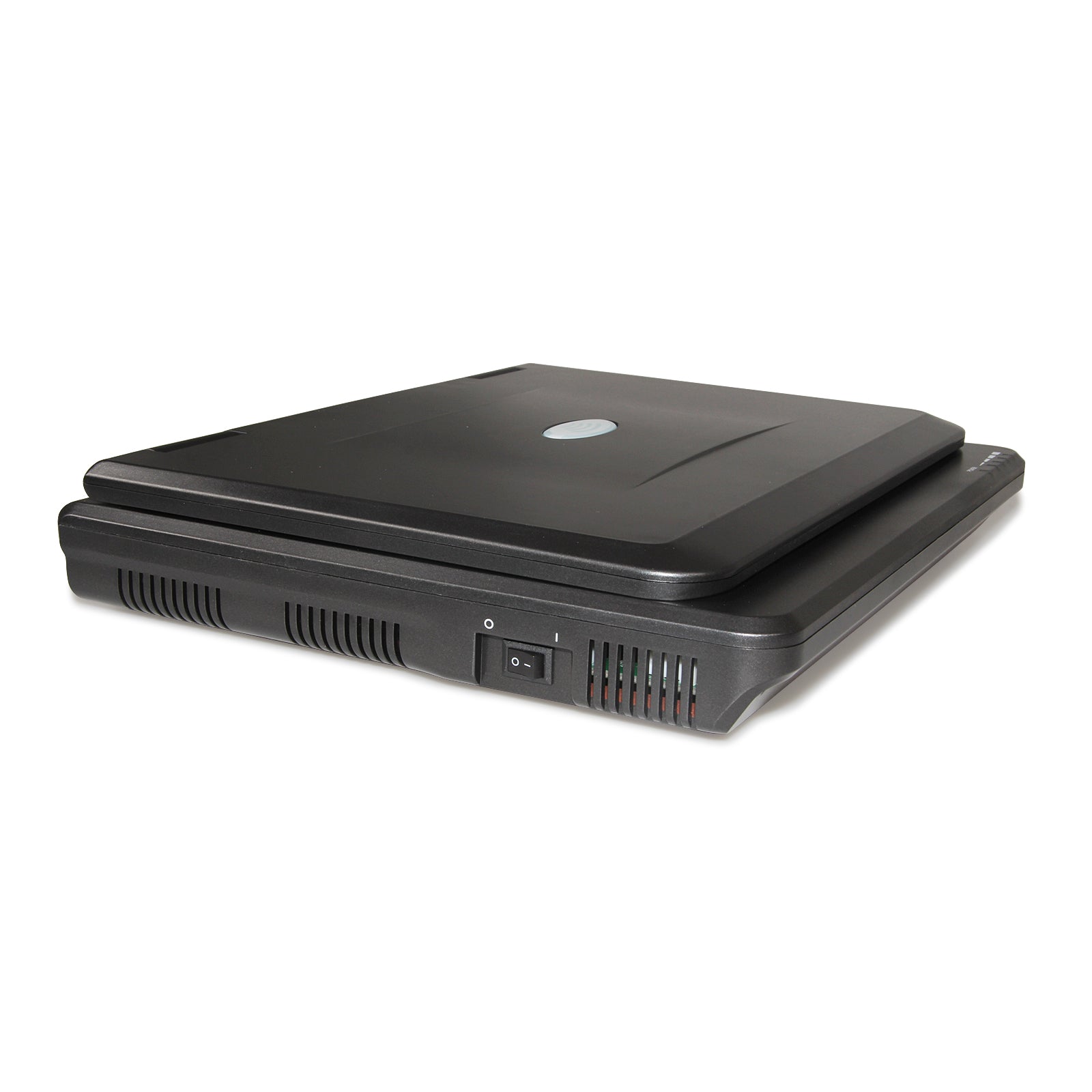

CMS600P2 Full Digital Portable Laptop Ultrasound Scanner

A compact, notebook-style B-ultrasound diagnostic system built on a Linux embedded OS for reliable clinical performance.

Key Features

  • Full digital beam-forming with real-time dynamic aperture, focusing & apodization

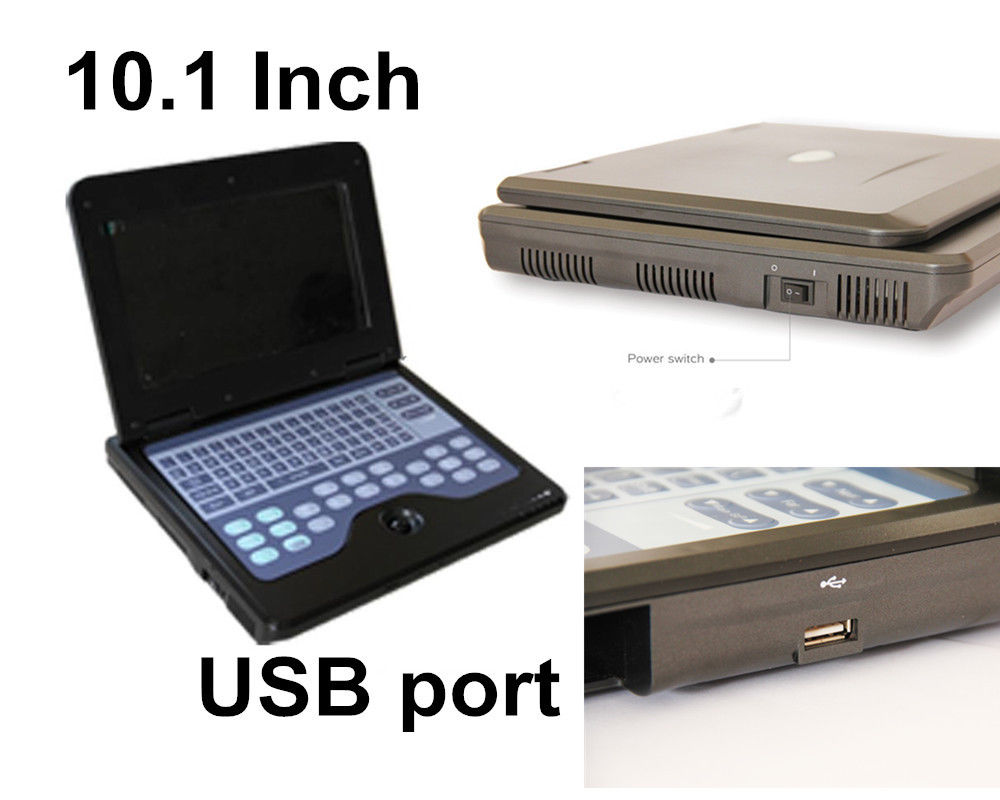

  • 10.1" TFT LCD display (1024x600 resolution), 256 gray scale
  • Built-in battery for portable field use; lightweight at 2.3kg including probe
  • Touch-type folding keyboard with trackball for fast operation
  • Rich measuring packages: Obstetrics, Gynecology, Cardiology, Urology, Small Parts
  • Cine loop: 600 frames | Image storage: 2048 frames

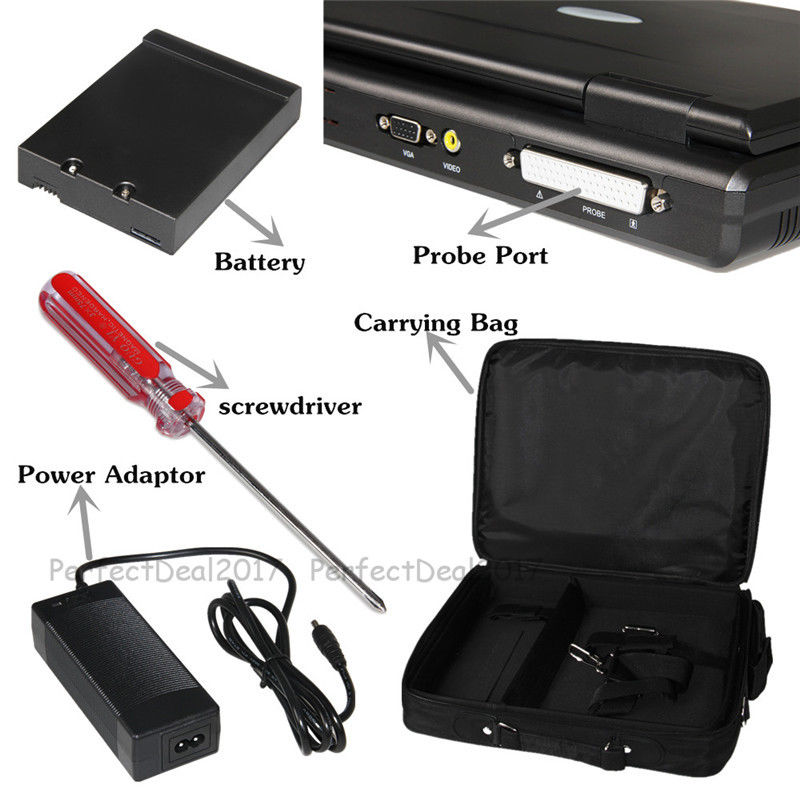

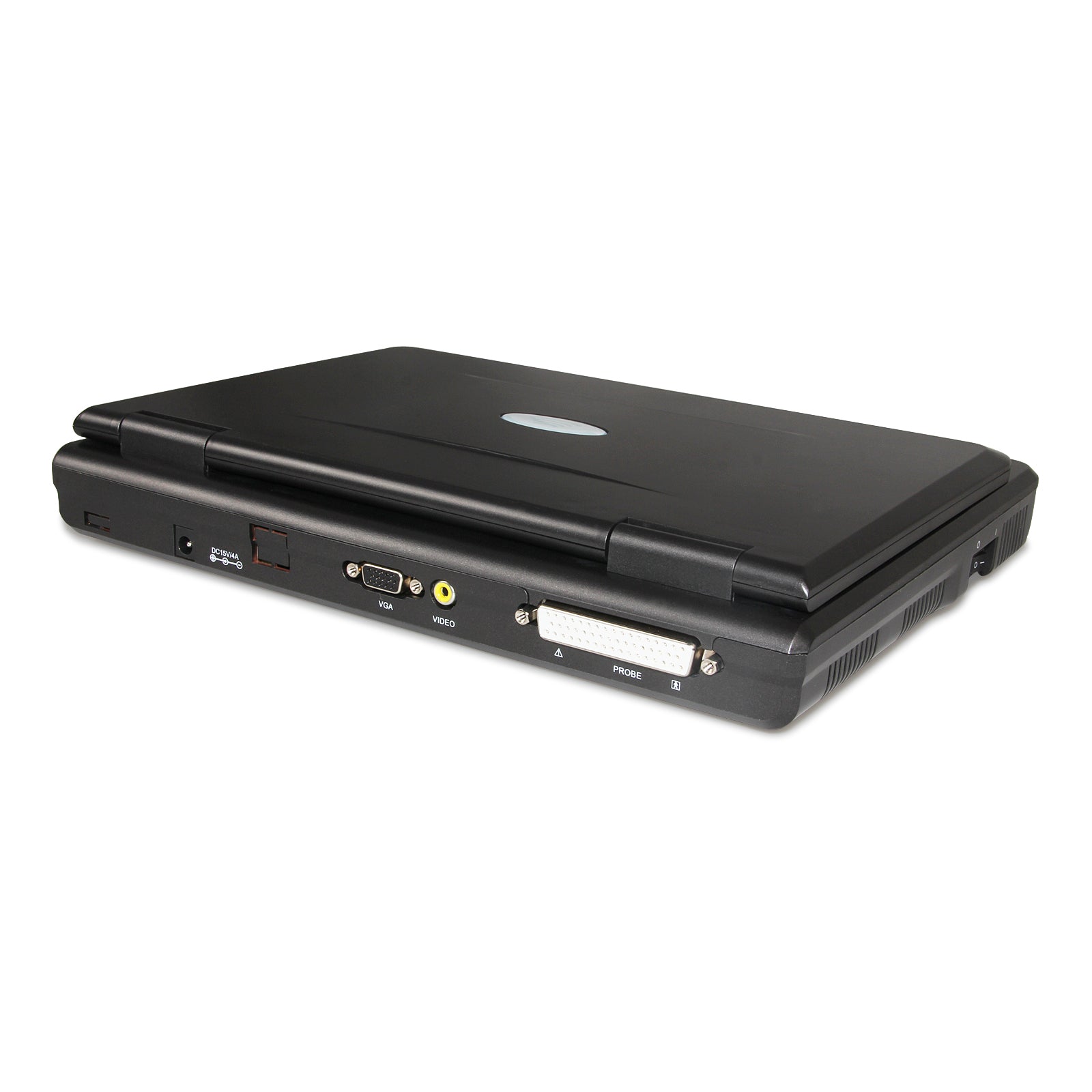

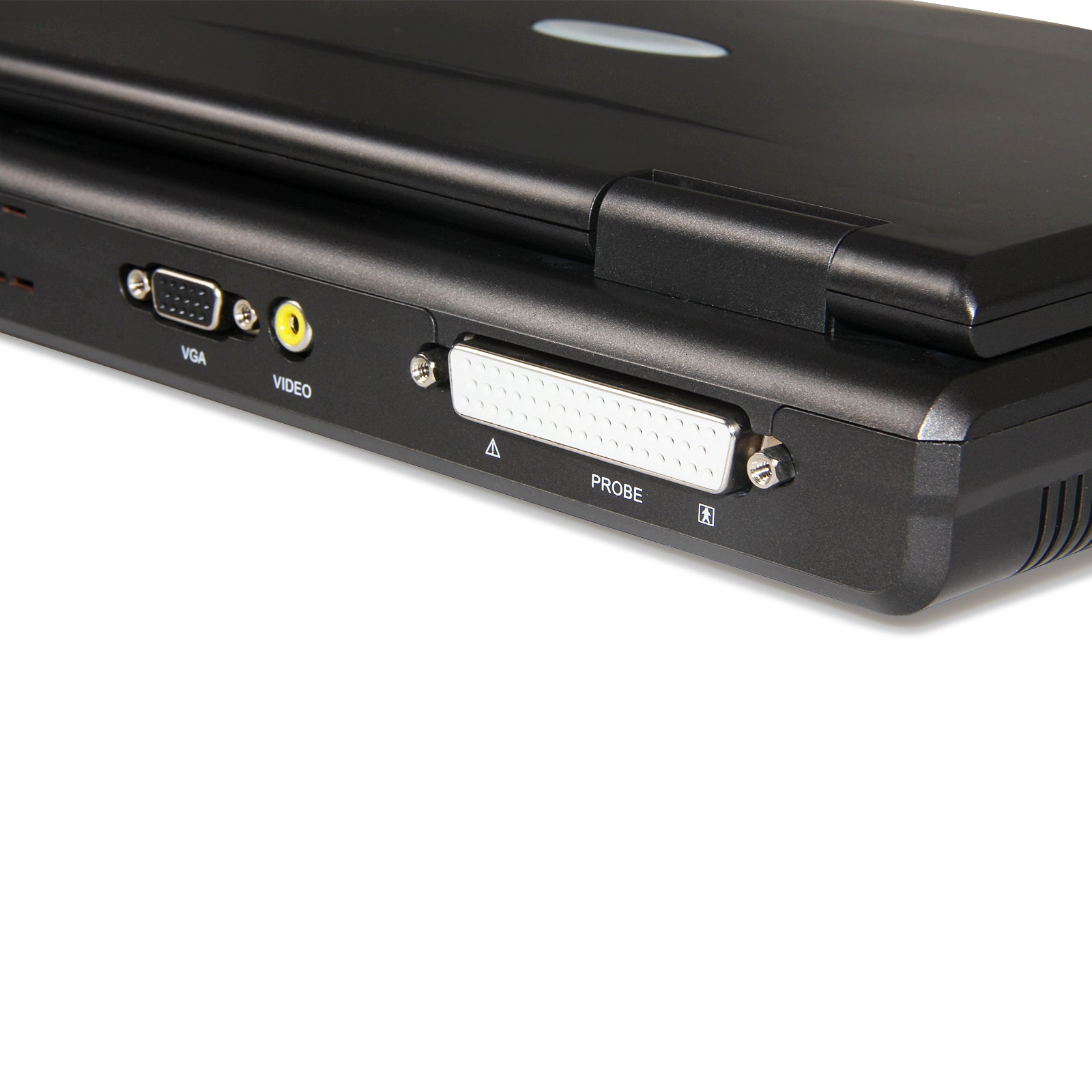

  • Interfaces: USB, Video, VGA | Supports USB software updates
  • Compatible with video printer, inkjet printer, and laserjet printer

Technical Specifications

  • Display modes: B, 2B, 4B, B/M, M
  • Monitor: 10.1" TFT LCD | Resolution: 1024x600
  • Lateral resolution: 2mm (near) / 4mm (far) | Axial resolution: 2mm
  • Display depth: up to 240mm | Dead zone: ≤3mm
  • Zoom: 0.9x – 2.0x | Body marks: 43
  • Dimensions: 292mm x 232mm x 45mm | Weight: 2.3kg (with probe)

Standard Configuration

  • 3.5MHz convex probe (2.0MHz–5.0MHz range)

Optional Probes

  • 6.5MHz endo-vaginal probe (5.0MHz–8.5MHz)
  • 7.5MHz linear probe (5.0MHz–10.0MHz)

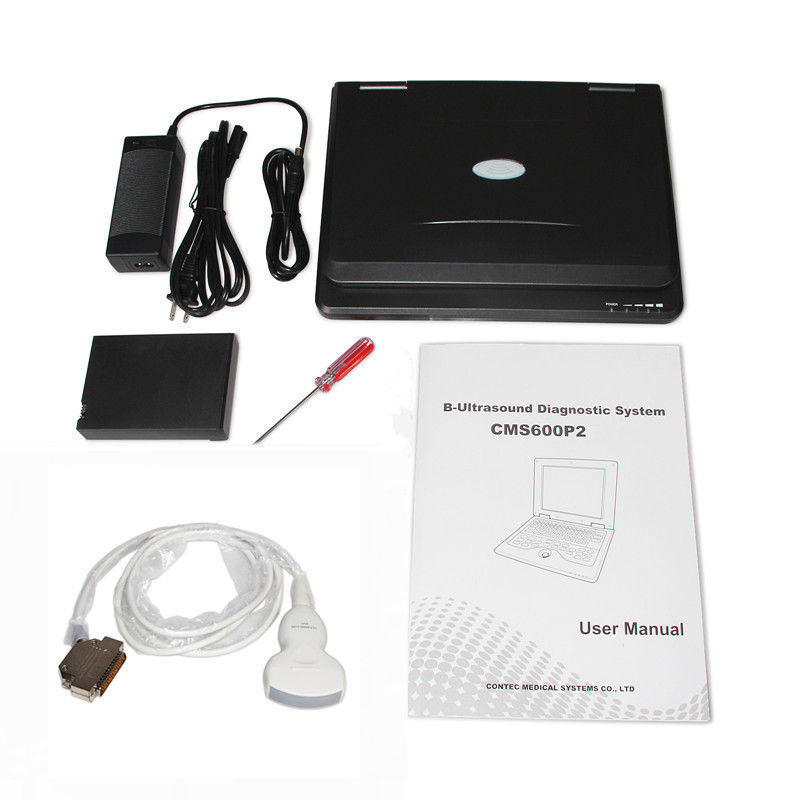

Package Contents

  • 1x CMS600P2 Portable Laptop Ultrasound Scanner
  • 1x 3.5MHz Convex Probe
  • 1x Carry Case
