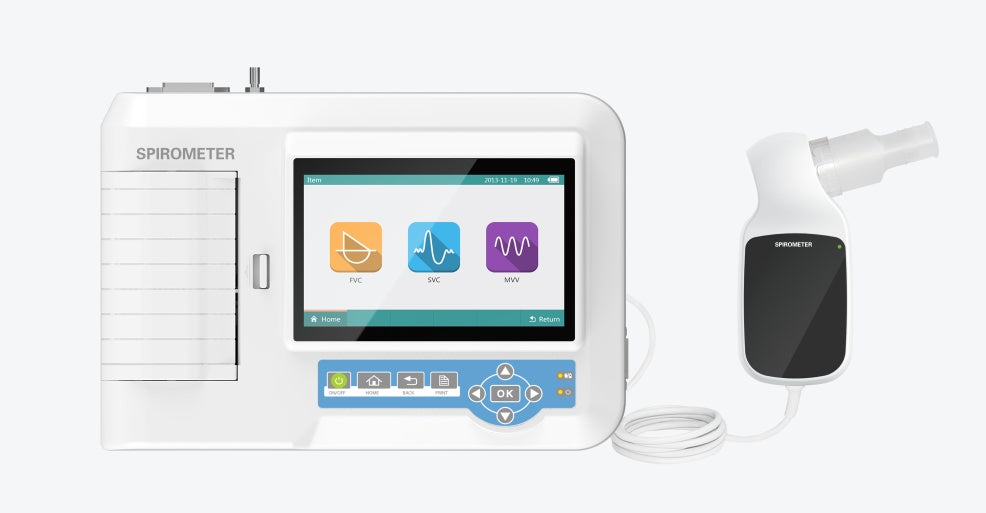

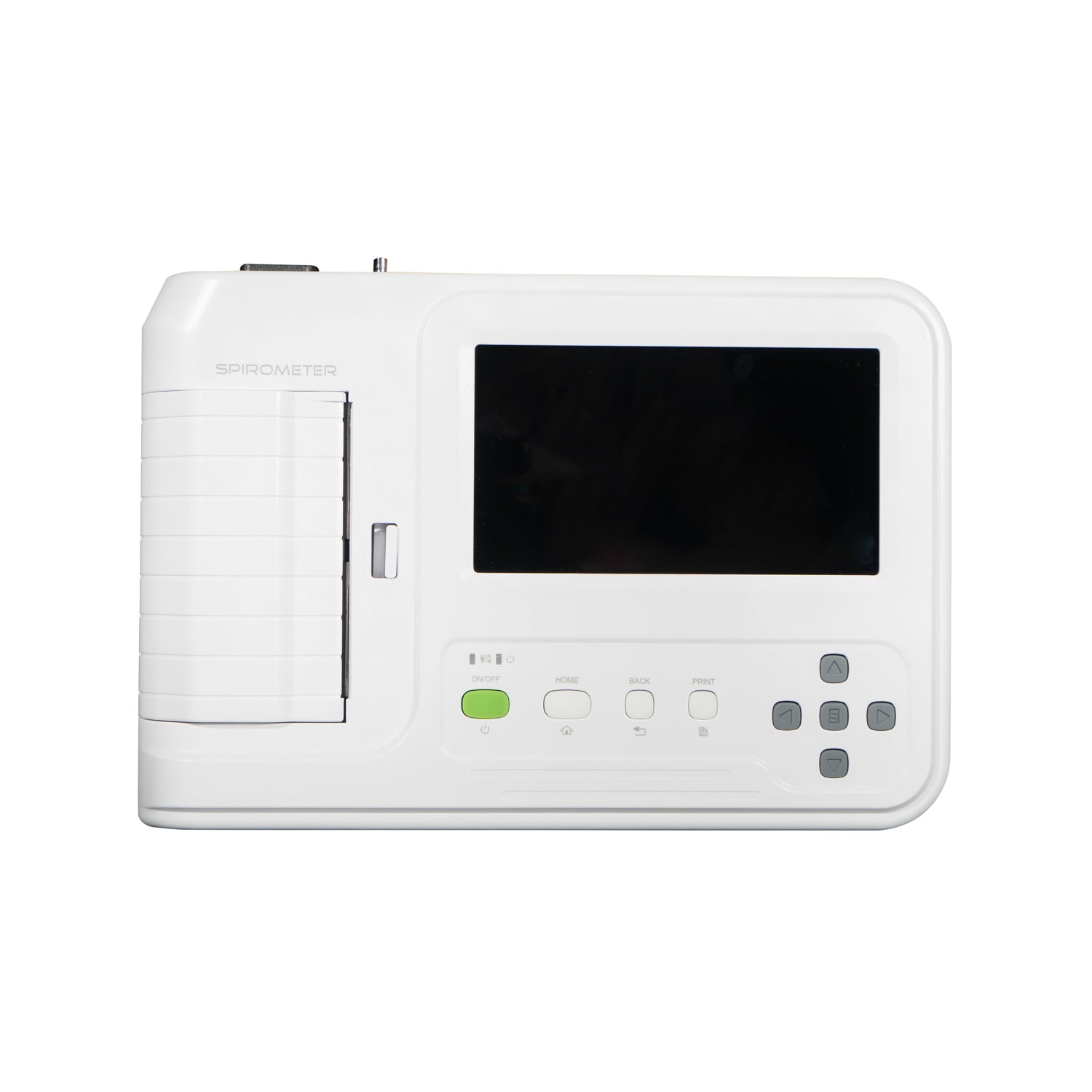

SP100 Portable Spirometer – Lung Function Testing, 7" Touch Screen & Built-in Thermal Printer

Clinical-Grade Lung Function Testing — SP100 Portable Spirometer

The SP100 Spirometer is a professional portable lung function testing device designed for hospitals, clinics, community health centres, schools, factories, and occupational health screenings. With over 50 measurable parameters, a 7" colour touch screen, built-in thermal printer, and a rechargeable lithium battery, it delivers accurate, reliable pulmonary function assessment wherever it’s needed.

Key Features

• 🫑 50+ Lung Function Parameters — FVC, VC/SVC, MVV and all related sub-parameters measured and displayed
• 📊 Real-Time Waveform Display — Flow-Volume loop and Volume-Time curve shown live on screen
• 📱 7" Colour TFT Touch Screen — Intuitive interface with button and touch operation
• 👶 Incentive Animation Guide — Easy-to-follow visual prompts for children and elderly patients

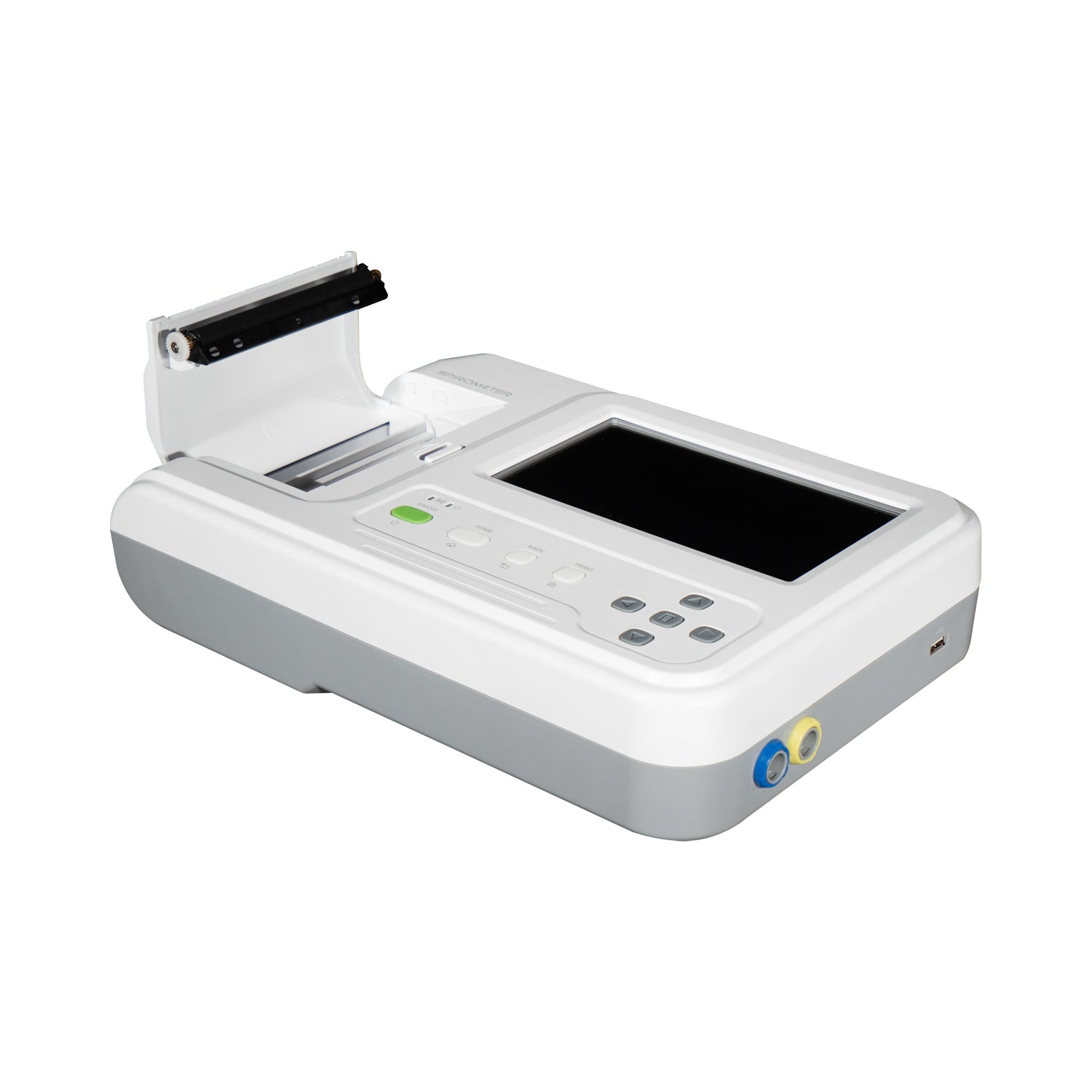

• 🖨️ Built-in Thermal Printer — Print reports directly without external equipment
• 💾 10,000+ Patient Records — Large internal storage for comprehensive data management
• 🔋 AC & DC Power — Built-in lithium battery supports both mains and battery operation
• 🌡️ BTPS Auto Correction — Compensates for environmental temperature and pressure differences
• 📅 Lung Age Estimation — Provides lung age assessment alongside standard parameters
• 📏 Calibration Function — Ensures ongoing measurement accuracy

Measurement Parameters

• Forced Vital Capacity (FVC): FVC, FEV1, PEF, FEV1%, FEV1/FVC, FEF25, FEF50, FEF75, FEF2575, FEV1/VC, FEV6, FEV1/FEV6, ELA, FET, EVOL, FIVC, FIV1, FIV1/FIVC, PIF, MVV
• Vital Capacity (VC/SVC): VC, IC, ERV, IRV, EVC, IVC, TV, VE, RR, tI, tI/tE, tE, TV/tI, tI/ttot
• Maximum Ventilatory Volume (MVV): MVV

Technical Specifications

• Volume Range: 0–10 L (FVC)
• Volume Accuracy: ±3% or ±0.05 L (whichever is greater)
• Flow Range: 0–16 L/s
• Flow Accuracy: ±5% or ±0.2 L/s (whichever is greater)
• Display: 7" Colour TFT Touch Screen
• Power Supply: 100V–240V~ 50/60Hz (AC) + Built-in Lithium Battery (DC)
• Input Power: 60 VA
• Safety Classification: Class I Equipment, Type BF Applied Part
• Printing Paper: 112mm (W) × 20m (L) high-speed thermal paper
• Dimensions: 315 × 215 × 92mm
• Weight: 1.8 kg

Package Contents

• 1× SP100 Spirometer
• 4× Disposable Mouthpieces
• 1× Nose Clip
• 1× USB Cable
• 1× Recording Paper Roll
• 1× Power Cord
• 1× User Manual

Accurate, portable, and built for clinical environments — the SP100 delivers professional lung function assessment wherever it’s needed most.
