Clinical-Grade Cardiac Monitoring — CONTEC TLC6000 24-Hour Holter ECG Monitor

The CONTEC TLC6000 is a professional-grade dynamic ECG system designed for continuous 24-hour cardiac monitoring using the international standard 12-lead configuration. Compact enough to wear comfortably at 61.5g, yet powerful enough for full arrhythmia analysis, pacemaker detection, and heart rate variability assessment — it’s the trusted choice for medical institutions and community health settings. CE and FDA certified.

Key Features

• ❤️ 24-Hour 12-Lead ECG Recording — Continuous waveform capture using international standard lead configuration
• 🧠 Sync 12-Lead Analysis — Any channel selectable as main analysis channel; accurate QRS detection with no distortion
• 📊 10+ Pathology Templates — Atrial premature beat, ventricular premature beat, long interval, atrial fibrillation and more
• 💓 Flexible Atrial Fibrillation Analysis — Full or segmented AUTO/manual analysis for maximum accuracy
• 🤖 Pacemaker Analysis — Supports AAI, VVI, DDD and all major pacemaker types
• 🔬 HRV Analysis — 5-minute, 1-hour and full 24-hour heart rate variability assessment
• ⚠️ HRT & T-Wave Alternation — Predicts death risk in myocardial infarction and malignant arrhythmia
• 💾 Advanced Analysis Modules — QTD, VCG, VLP and TVCG for comprehensive reporting
• 🖨️ One-Key Print — Fast, convenient report printing directly from PC software
• ✅ CE & FDA Certified — Meets international medical device standards

Technical Specifications

• Lead System: Standard 12-Lead
• Power Supply: 1× AAA Alkaline Battery
• Interface: USB 2.0
• Input Impedance: ≥10MΩ
• CMR: ≥60dB
• System Noise: ≤50µVp-p
• Frequency Response: 0.05Hz–40Hz (±3dB at 5Hz reference)
• Timing Accuracy: ≤30 seconds over 24 hours
• Recorder Dimensions: 81 × 60 × 22mm
• Recorder Weight: ~61.5g (without battery)
• Certifications: CE, FDA

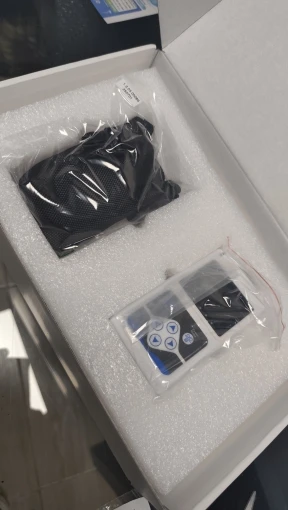

Package Contents

• 1× TLC6000 Holter Recorder
• 1 set Lead Cable
• 1 bag ECG Electrodes
• 1× USB Cable
• 1× PC Analysis Software
• 1× Carry Bag
• 1× User Manual

Certifications: CE • FDA — Suitable for use in medical institutions and community health settings.
