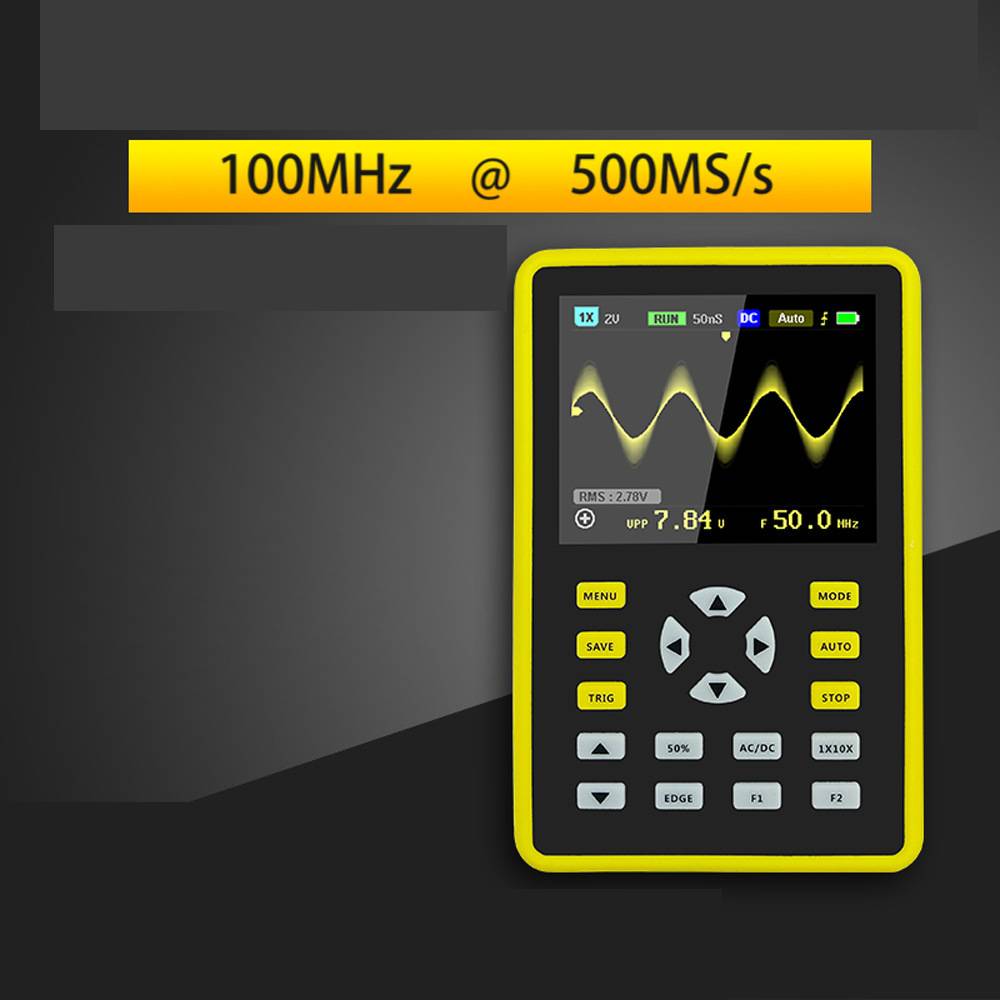

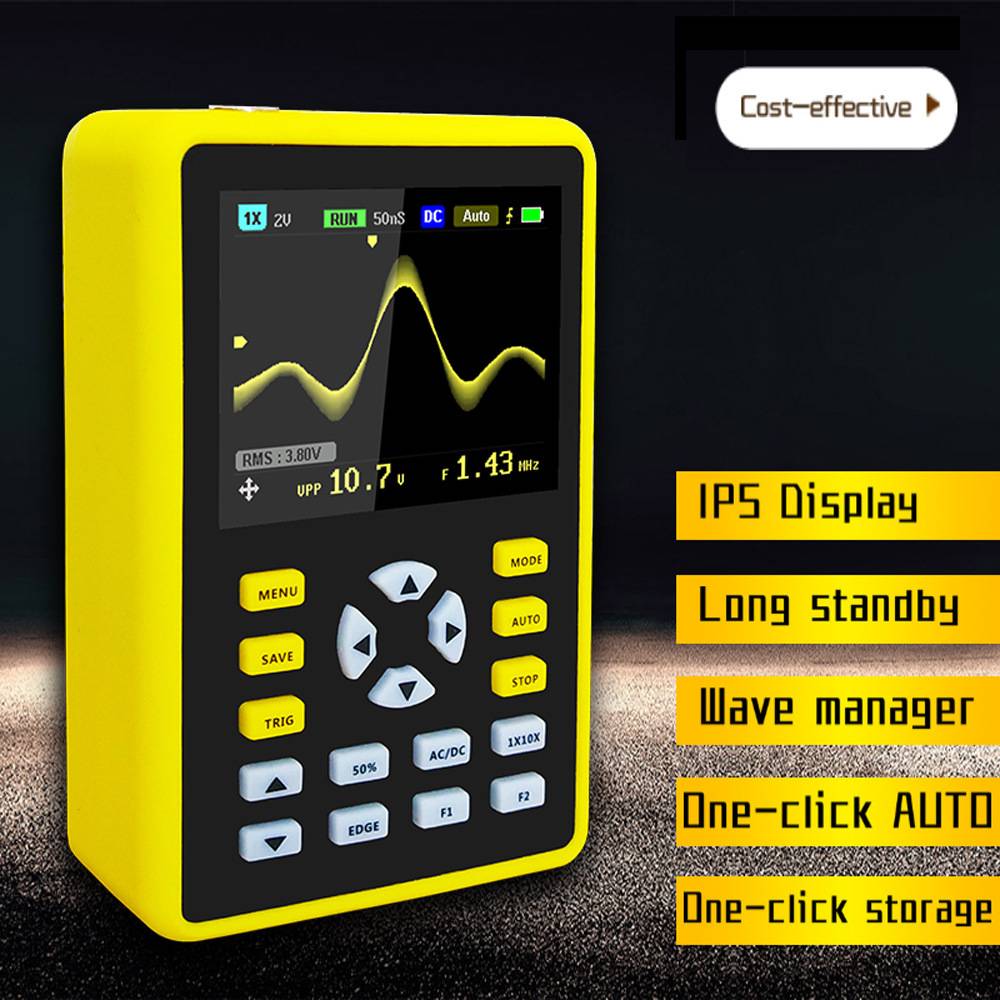

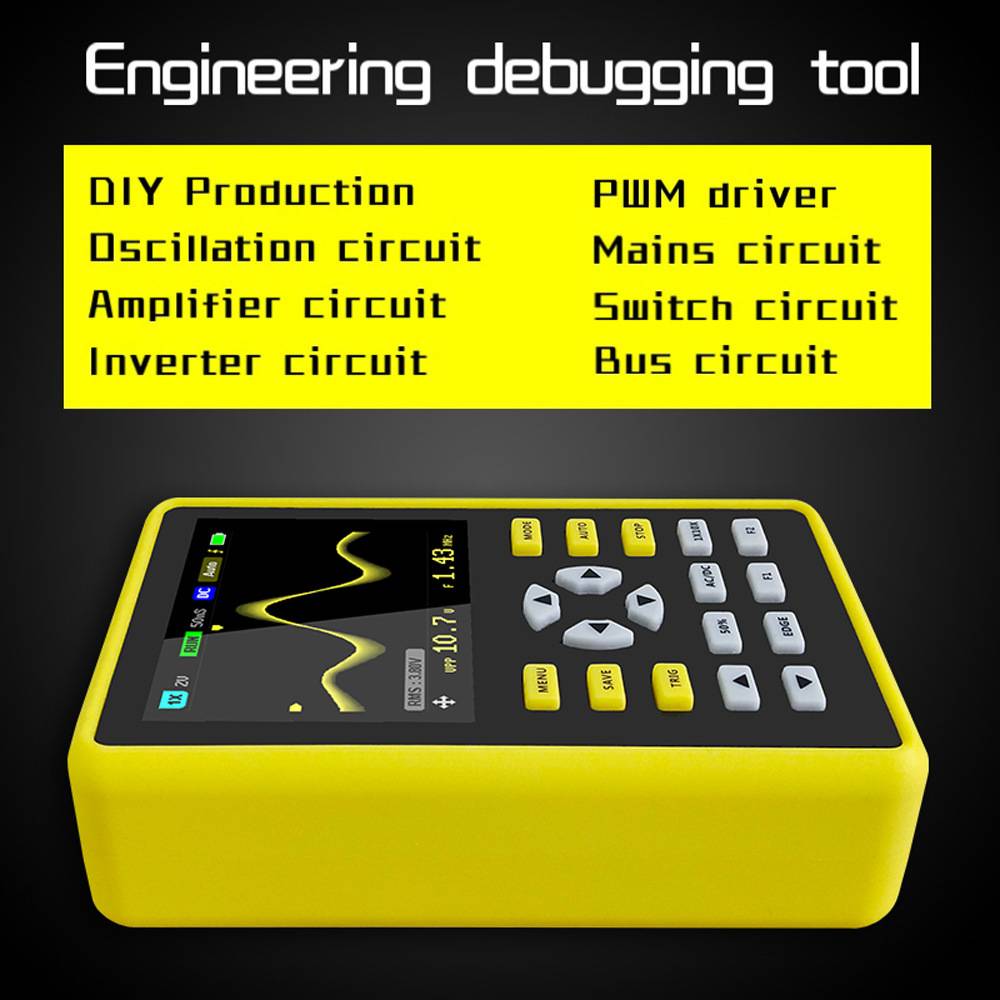

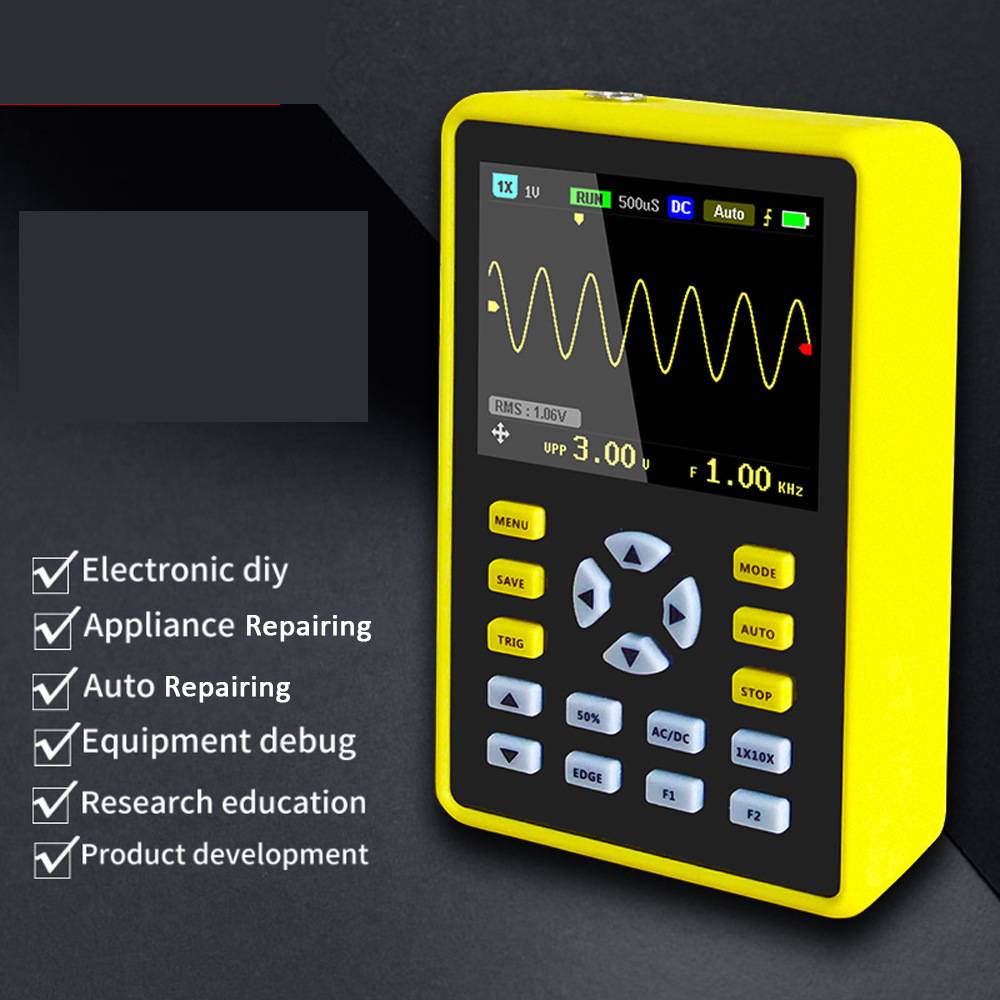

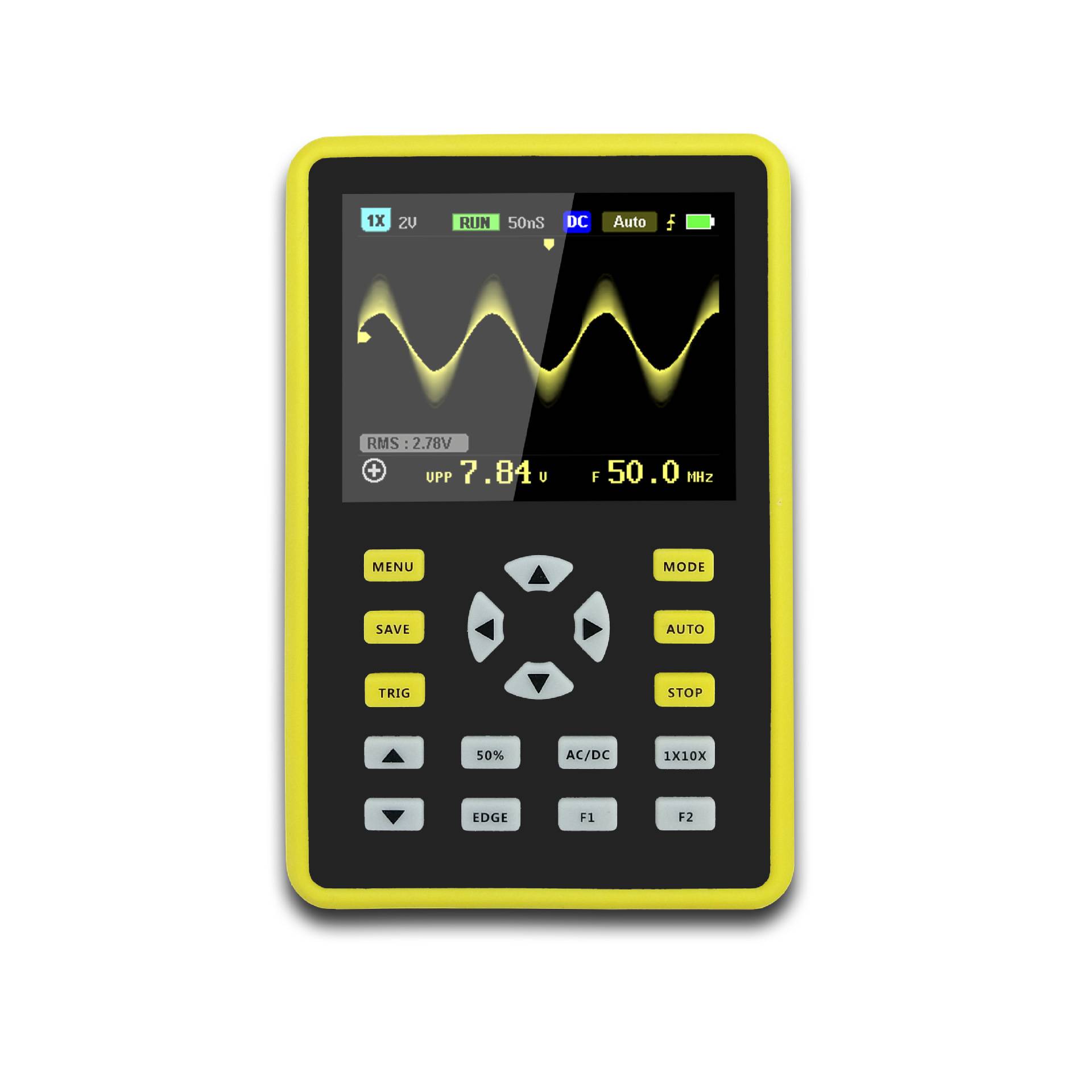

ADS5012H 100MHz Digital Oscilloscope | 500MS/s, 2.4" IPS, 5000mAh Battery, USB, Waveform Storage

ADS5012H 100MHz Digital Oscilloscope | 500MS/s, 2.4" IPS, 5000mAh Battery, USB, Waveform Storage

Regular price $203.72 USD
Regular price Sale price $203.72 USD
Sale Sold out
Shipping calculated at checkout.
Color
Model
Quantity

Professional Signal Analysis in Your Hands — ADS5012H 100MHz Digital Oscilloscope

The ADS5012H 100MHz Digital Oscilloscope is a compact, portable test instrument built for electronics engineers, technicians, students, and hobbyists. With a 100MHz analog bandwidth, 500MS/s real-time sampling rate, 128Kb waveform storage depth, and a crisp 2.4" IPS display, it delivers professional-grade signal measurement in a handheld form factor — powered by a built-in 5000mAh lithium battery for truly portable operation.

Key Features

  • 📊 100MHz Analog Bandwidth — Captures high-frequency signals with precision and clarity
  • 500MS/s Real-Time Sampling Rate — Fast sampling for accurate waveform reproduction
  • 💾 128Kb Waveform Storage — Deep memory for capturing and reviewing signal data
  • 🖥️ 2.4" IPS Display (320×240) — Bright, sharp screen for clear waveform visualization
  • 🔋 5000mAh Lithium Battery — Long-lasting portable power for field and bench use
  • 🔌 AC / DC Coupling Modes — Flexible signal coupling for diverse measurement scenarios
  • 🔄 3 Trigger Modes — Single, Normal & Automatic triggering with rising/falling edge selection
  • 📶 USB Connectivity — Micro USB data cable for easy data transfer and charging
  • 🔬 50mV/Div – 100V/Div Sensitivity — Wide vertical range for low and high amplitude signals

Specifications

  • Analog Bandwidth: 100MHz
  • Sampling Rate: 500MS/s (real-time)
  • Vertical Sensitivity: 50mV/Div – 100V/Div
  • Time Range: 50S/Div – 6ns/Div
  • Max Test Voltage: 80V (1X Probe) / 800V (10X Probe)
  • Storage Depth: 128Kb
  • ADC Accuracy: 8-bit
  • Input Resistance: 1MΩ
  • Display: 2.4" IPS, 320×240
  • Battery: 5000mAh Lithium
  • Coupling: AC / DC
  • Trigger: Single / Normal / Automatic

Package Contents

  • 1× ADS5012H Oscilloscope
  • 1× 100MHz Probe (1X & 10X)
  • 1× Micro USB Data Cable
  • 1× User Manual (English)
