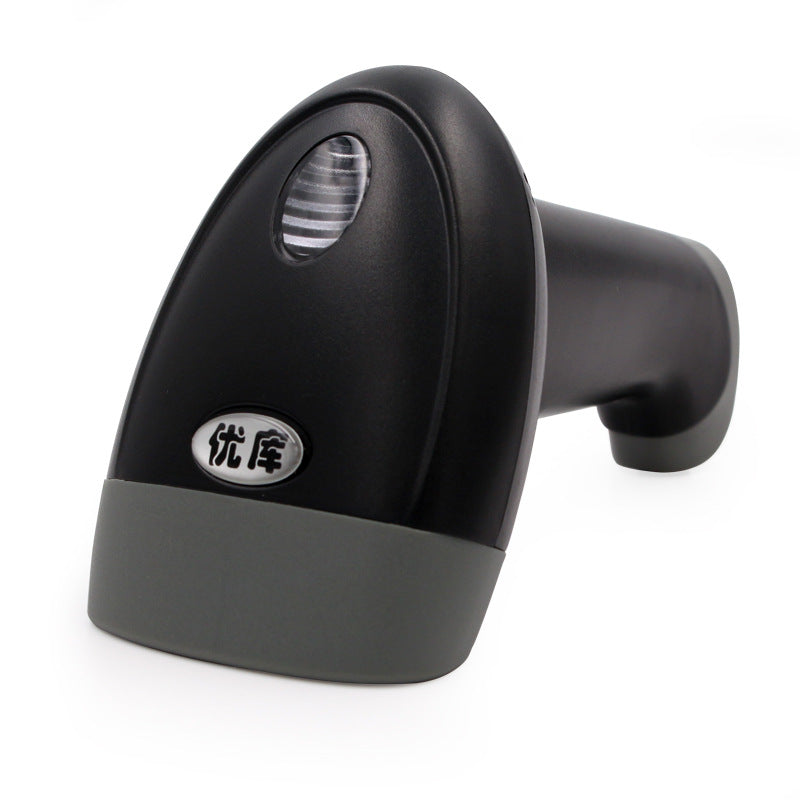

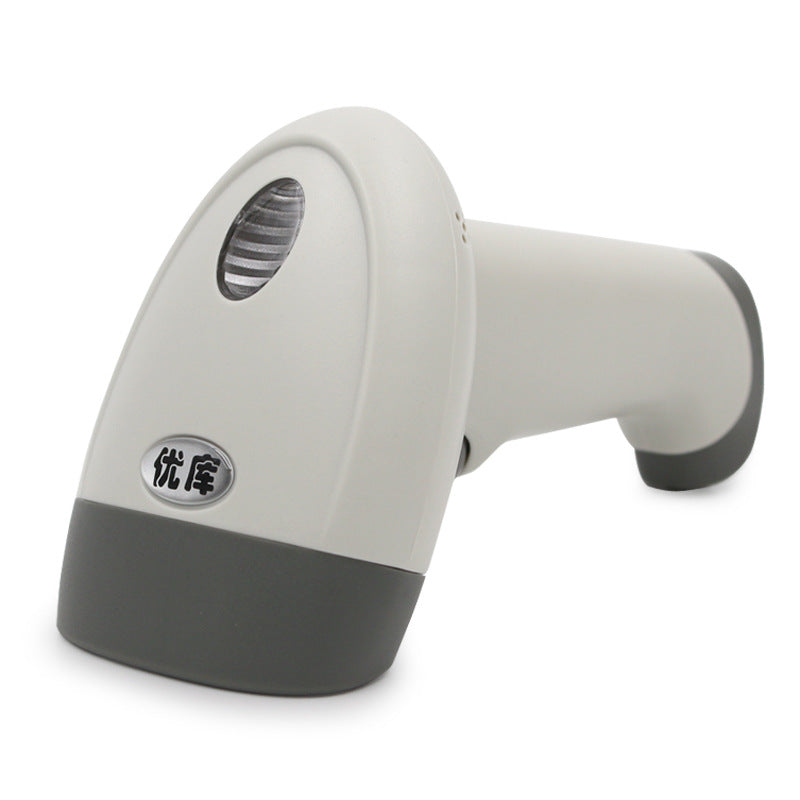

Youku M2 1D Barcode Scanner | Red Laser | 120 Scans/sec | USB & Serial | IP54 | 2m Drop-Proof | White

Youku M2 1D Barcode Scanner — Red Laser | 120 Scans/sec | USB & Serial | IP54 | 2m Drop-Proof

A fast, durable, and reliable 1D barcode scanner for retail, warehouse, logistics, and point-of-sale environments. The Youku M2 uses a visible red laser (632nm) to scan 1D barcodes at up to 120 scans per second — fast enough for high-volume scanning without slowdowns. The USB and serial port interface makes it compatible with virtually any POS system, PC, or terminal. IP54-rated waterproof and dustproof construction, combined with 2-metre drop resistance, makes it built for demanding real-world environments. CE & FCC certified for electromagnetic compliance.

Key Features

• 120 Scans Per Second: High-speed red laser scanning at 120 reads per second — handles fast-paced retail checkouts, warehouse picking, and high-volume barcode scanning without lag or missed reads
• Red Laser Light Source (632nm): Visible red laser at 632nm wavelength provides a clear, precise scan line — easy to aim accurately at barcodes on products, shelves, and packaging in various lighting conditions up to 10,000 LUX ambient light
• USB & Serial Port Interface: Supports USB, serial port, and USB virtual serial port — compatible with a wide range of POS systems, computers, terminals, and legacy hardware without additional drivers in most cases
• IP54 Waterproof & Dustproof: IP54-rated protection against dust ingress and water splashes — suitable for use in warehouses, stockrooms, kitchens, and outdoor environments where exposure to dust and moisture is likely
• 2-Metre Drop Resistance: Withstands free falls from up to 2 metres — built to survive accidental drops on concrete, tile, and warehouse floors without damage to the scanner or its performance
• CE & FCC Certified | Dual Feedback: CE & FCC electromagnetic compliance certified for international use — buzzer sound alert plus dual-colour LED (red = power on / blue = successful decode) provides clear, instant scan confirmation

Specifications

• Model: Youku M2
• Light Source: Visible Red Laser, 632nm (±3nm)
• Scan Speed: 120 scans/second
• Interface: USB / Serial Port / USB Virtual Serial Port
• Ambient Light: Up to 10,000 LUX
• Min. Contrast: 25% reflection difference
• Drop Resistance: 2 metres
• IP Rating: IP54 (waterproof & dustproof)
• Working Voltage: 5V ±0.25V
• Working Current: 100mA
• Operating Temperature: -20°C to +60°C
• Storage Temperature: -40°C to +85°C
• Operating Humidity: 10–95% (non-condensing)
• Storage Humidity: 10–95% (non-condensing)
• Dimensions: 165 × 80 × 100mm
• Weight: 250g
• Certifications: CE & FCC
• Feedback: Buzzer + Dual LED (Red: power / Blue: decode success)
• Colour: White

In the Box

• 1 × Youku M2 1D Barcode Scanner (White, USB & Serial Port)
• 1 × USB / Serial Cable

⚠️ Note: This scanner reads 1D (one-dimensional) barcodes only — not compatible with 2D barcodes (QR codes, Data Matrix, PDF417). Verify 2D scanning capability with supplier if QR code reading is required. Tone and LED feedback can be customised — verify configuration options with supplier. Compatible with Windows, Mac, and Linux in USB HID mode (plug and play). Serial port mode may require driver installation.
